Terri 3HT

When conditions are at their worst is when our tracked harvester works best. With first class range and a powerful harvester head, you will do an excellent job, whatever the terrain.

Terri 3HT

When conditions are at their worst is when our tracked harvester works best. With first class range and a powerful harvester head, you will do an excellent job, whatever the terrain.

Do the conditions make a good job unlikely? Then it is time to call in the expert! Accessibility, comfort and flexibility are just three words that are synonymous with Terri 3HT. It thrives with first and second thinning and when driving on sensitive ground. Thanks to its first-rate range, it does a perfect job even when the terrain is uncompromising.

Both the driving and working experience are important to us. That is why we have equipped Terri 3HT with Mowi P40, a powerful crane that ensures a range of just over six metres. This really makes the work easier in dense and unforgiving terrain.

When you step into a Terri 3HT you will experience the comfort: an airy, spacious cabin that are equipped with technology and amenities adapted for long working days.

Our machines are delivered with the latest technology. With a Terri 3HT, there are several different equipment levels to choose from. Are you looking for a flexible, easily manoeuvrable harvester with optimal performance? Then look no further than a Terri 3HT!

Frequently Asked Questions about Terri

  • Terri´s machines thrive with first and second thinning and when driving on sensitive ground. Thanks to its first-rate range, it does a perfect job even when the terrain is uncompromising.

  • Compared to its predecessor, Terri 3 is upgraded with 20 innovations. These are for example updates in the cabin, in the design and under the bonnet. Fully automatic optimal traction (Terri Automatic Wheel System, AWS), stronger and more fuel-efficient engine and a 24-volt electrical system.

  • Terri 3 is the third generation of Terri machines.
    C: combi
    F: forwarder
    H: harvester
    W: wheel
    T: tracks

    This means that a Terri 3 FW is a forwarder with wheels and a Terri 3 CT is a combi with tracks.

  • The mastermind behind these forestry machines is Småland company Alfing i Älmhult, which has 150 employees and a turnover of around SEK 250 million. Almost all production takes place in a dedicated factory, which means shorter lead times and a high level of expertise in everything to do with the machines.

  • Get in touch with your sales representative here on the website.

  • Your Terri machine, your choice. We assemble your dream machine based on your requirements, needs, and wishes. We put you in the driving seat and provide you with masses of choices when it comes to cranes, comfort, and additional equipment.
    Have a look in our Product Catalogue to see all optionals.

Terri 3HT Technical data

Engine
  • Diesel engine:
  • CAT 3.6
  • Power:
  • 55,4 kW
  • Number of cylinders:
  • 4
  • Torque:
  • 424 Nm/1 200 rpm
  • Diesel tank volume:
  • 100 l
Transmission
  • Transmission:
  • Fully hydraulic
  • Max. steering angle:
  • 45º
  • Gears:
  • 1, 2 & reverse
  • Max. speed:
  • 11 km/h
  • Track width:
  • 490 mm
Hydraulic system
  • Hydraulic system:
  • Danfoss
  • Tank volume:
  • 120 l
  • Pump capacity:
  • 115 cc
Electrical system
  • Electrical system:
  • 24 V
  • Battery:
  • 2x12 V / 100 Ah
  • Generator:
  • 100 A
Crane
  • Model:
  • Mowi P40
  • Lifting torque:
  • 37 kNm
  • Slewing torque:
  • 12 kNm
  • Slewing arc:
  • 220º
  • Reach:
  • 6.2 m

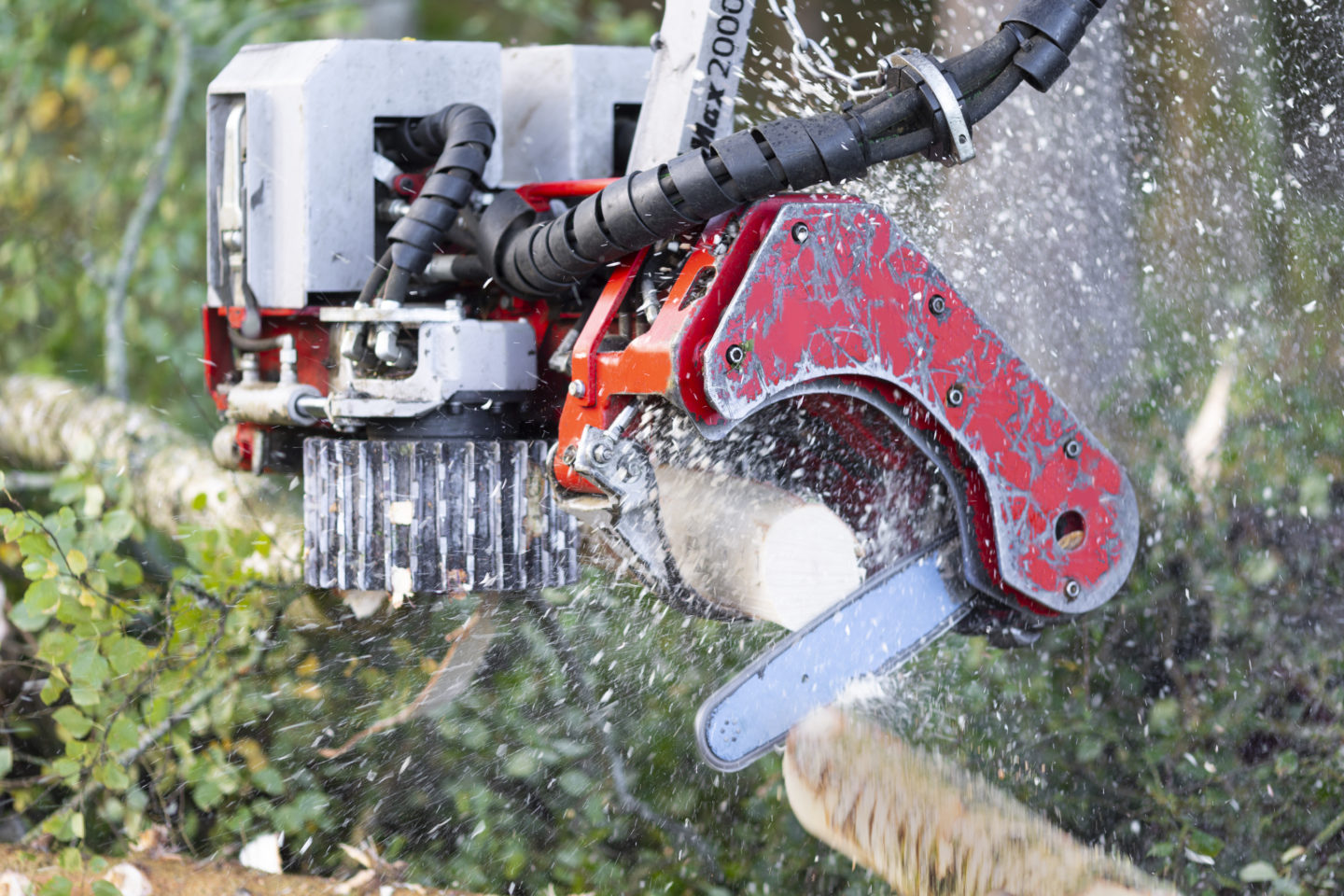

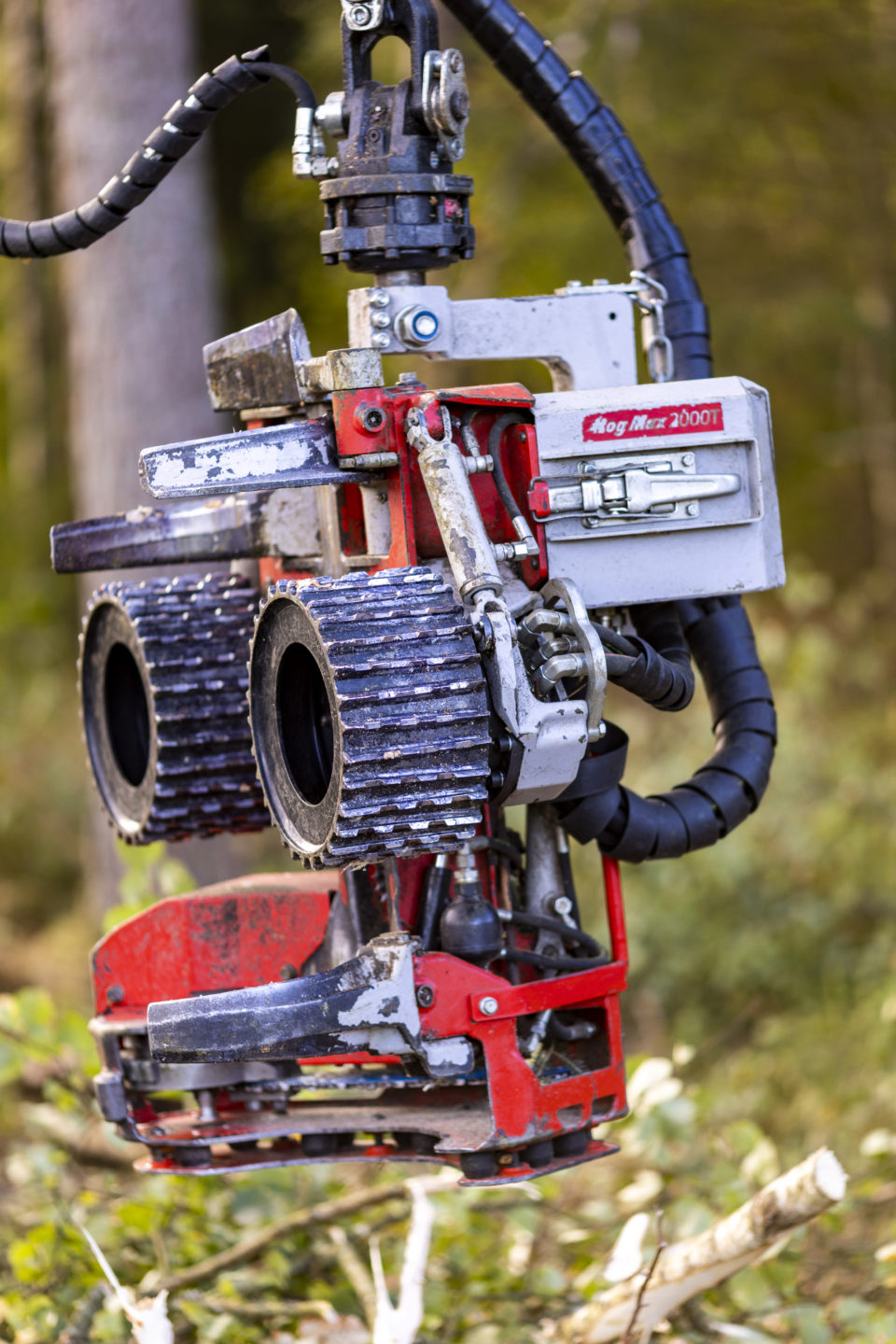

Harvester head
  • Model:
  • Log Max LM 2000T
  • Feed rate:
  • 3.1 / 4.0 m /sec
  • Feed force:
  • 14.9 kN
  • Number of feed wheels:
  • 2
  • Max. opening:
  • 330 mm
Chassis
  • Service weight:
  • 6600 kg
  • Length, standard:
  • 5700 mm
  • Width:
  • Front 1900 mm, Back 2200 mm
  • Highest height:
  • 2900 mm
  • Ground clearance:
  • 400 mm
Download Product Sheet

SUSTAINABLE FORESTRY

We develop our machines based on three basic requirements: gentleness to nature, comfortable workplaces for the driver and, of course, the right properties for efficient and smart forestry work. As a manufacturer of modern forestry machines, the fact is we play a decisive role that includes great responsibility for the future and sustainable forestry.

OPTIMAL DRIVER ENVIRONMENT

A welcoming and spacious cabin, adapted for long working days, is paramount. Regardless of whether you choose a harvester, forwarder or combi machine, you will be greeted by the latest technology, ergonomically designed chair, fully automatic climate control system and perfect overview of the working area thanks to the large windscreens. Everything has been sketched, adapted and designed down to the smallest detail.

Terri AWS

Thanks to Terri AWS (Automatic Wheel System), traction, power and manoeuvrability are automatically guaranteed. The system quite simply generates more power and the right amount to each wheel and all you as a driver have to do is focus on driving. Terri AWS is our own invention, which we are very proud of and pat ourselves on the back for.
