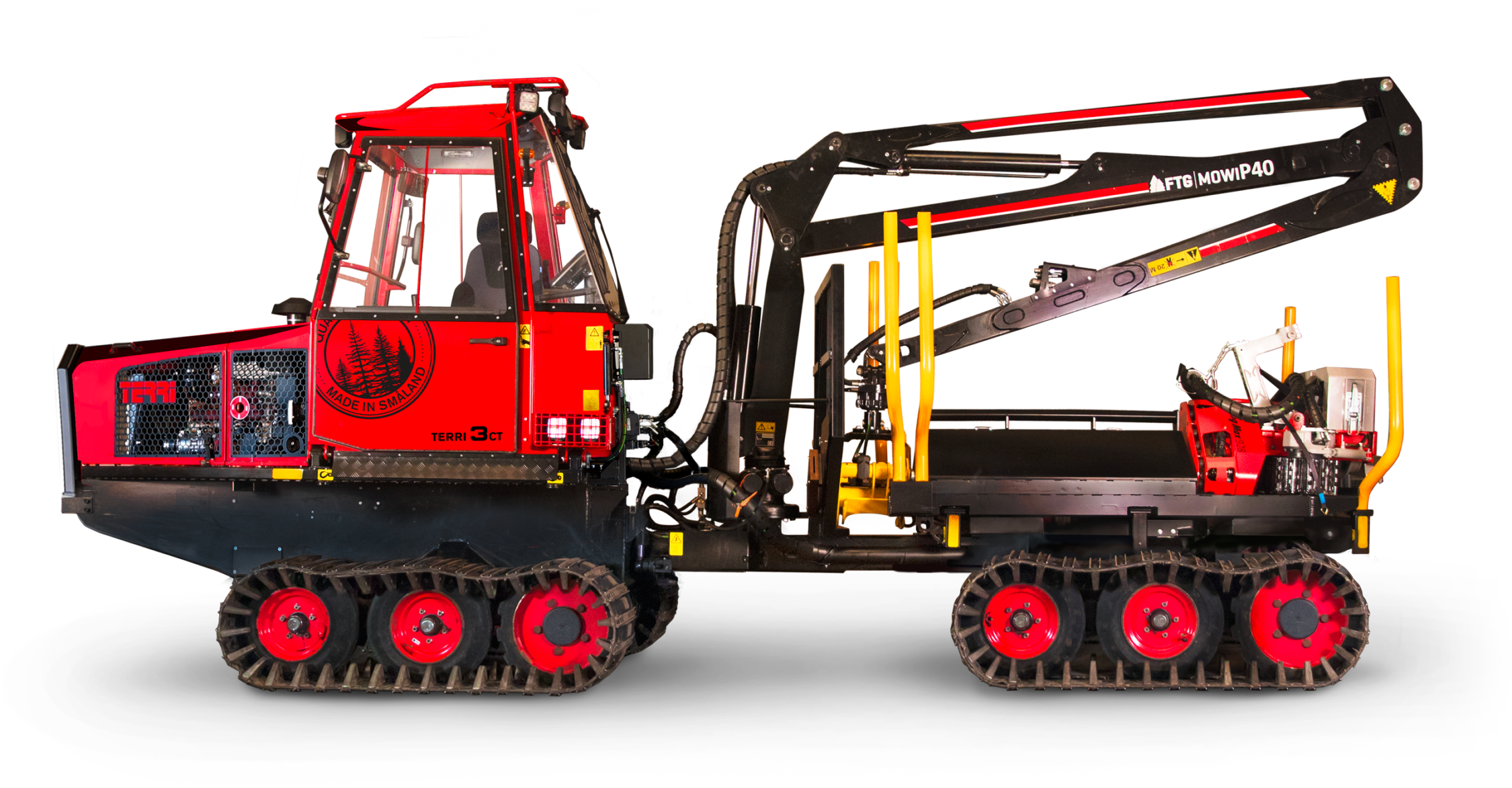

Terri 3CT

Two powerful forestry machines from the same mould. A stable and flexible workhorse which you can switch from harvesting to forwarding in just 15 minutes. Retaining performance, naturally.

Terri 3CT

Two powerful forestry machines from the same mould. A stable and flexible workhorse which you can switch from harvesting to forwarding in just 15 minutes. Retaining performance, naturally.

Two for the price of one. With a Terri 3CT you get to experience the best of two forestry machines all in one package. Harvest in the morning and forward after lunch. In just 15 minutes you can reassemble the machine from felling to forwarding and get on with the next job. Sometimes that Småland ingenuity knows no bounds…

As with all our machines, Terri 3CT is also smooth to use on all types of ground. Thanks to the powerful midjoint lock, the machine also feels very stable, whatever the surface.

The machine is equipped with a strong crane from Mowi that has a range of 6.2 metres and a powerful unit from Log Max. Both designed and adapted for machines such as Terri. Powerful equipment that brings the machine to a class of its own, both when it comes to harvesting and forwarding.

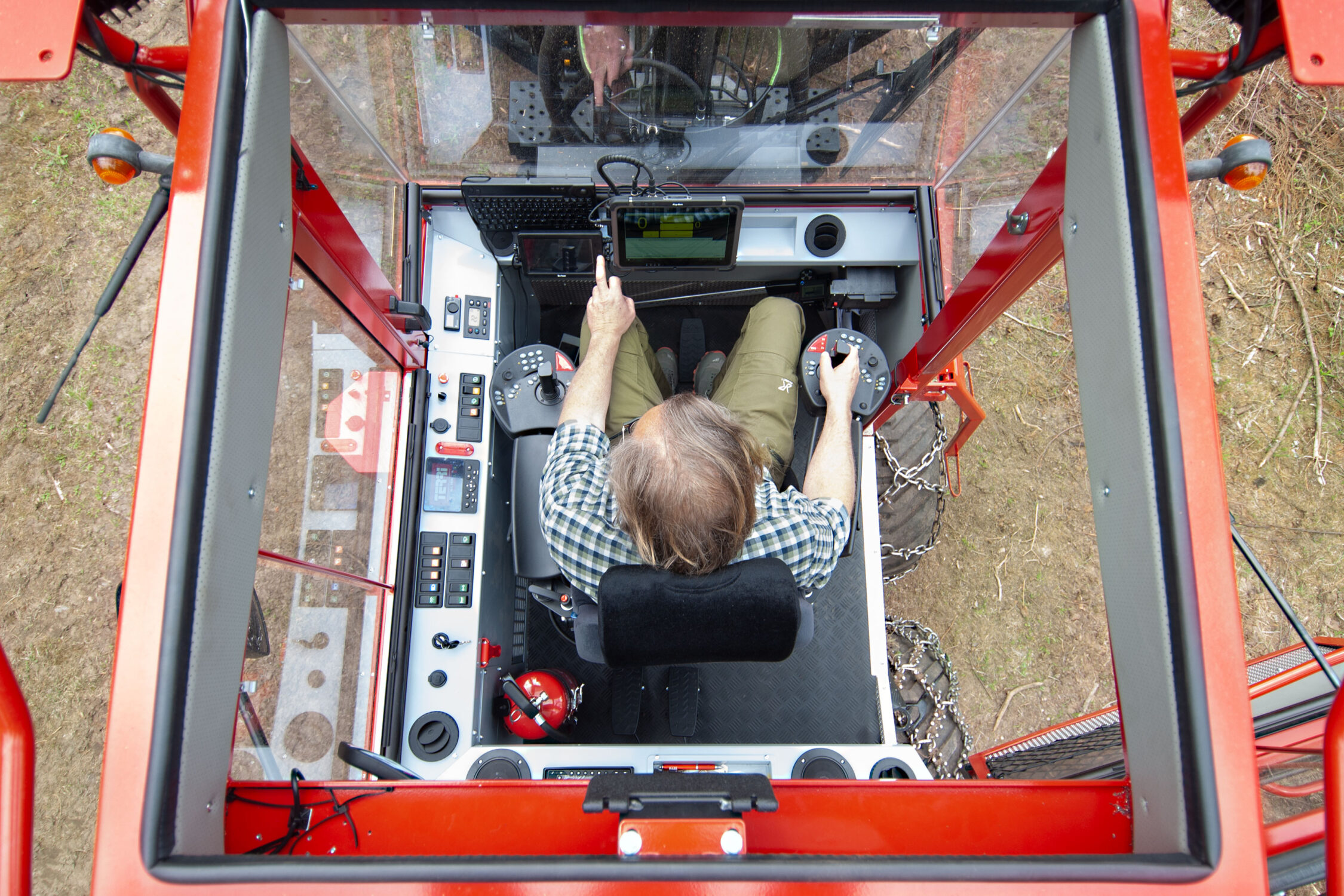

When getting into the Terri 3CT, you will be struck by how spacious it is. And well equipped. Our cabins are made for long working days with technology and amenities adapted accordingly.

Frequently Asked Questions about Terri

  • Terri´s machines thrive with first and second thinning and when driving on sensitive ground. Thanks to its first-rate range, it does a perfect job even when the terrain is uncompromising.

  • Compared to its predecessor, Terri 3 is upgraded with 20 innovations. These are for example updates in the cabin, in the design and under the bonnet. Fully automatic optimal traction (Terri Automatic Wheel System, AWS), stronger and more fuel-efficient engine and a 24-volt electrical system.

  • Terri 3 is the generation of Terrimachines.
    C: combi
    F: forwarder
    H: harvester
    W: wheel
    T: tracks

    This means that a Terri 3 FW is a forwarder with wheels and a Terri 3 CT is a combi with tracks.

  • The mastermind behind these forestry machines is Småland company Alfing i Älmhult, which has 150 employees and a turnover of around SEK 250 million. Almost all production takes place in a dedicated factory, which means shorter lead times and a high level of expertise in everything to do with the machines.

  • Get in touch with your sales representative here on the website.

  • Your Terri machine, your choice. We assemble your dream machine based on your requirements, needs, and wishes. We put you in the driving seat and provide you with masses of choices when it comes to cranes, comfort, and additional equipment.
    Have a look in our Product Catalogue to see all optionals.

Terri 3CT Technical data

Engine
  • Diesel engine:
  • CAT 3.6
  • Power:
  • 55.4 kW
  • umber of cylinders:
  • 4
  • Torque:
  • 424 Nm/1 200 rpm
  • Diesel tank volume:
  • 100 l
Transmission
  • Transmission:
  • Fully hydraulic
  • Max. steering angle:
  • 45°
  • Gears:
  • 1, 2 & reverse
  • Max. speed:
  • 11 km/h
  • Track width:
  • 490 mm
Hydraulic system
  • Hydraulic system:
  • Danfoss
  • Tank volume:
  • 120 l
  • Pump capacity:
  • 115 cc
Electrical system
  • Electrical system:
  • 24 V
  • Battery:
  • 2x12 V / 100 Ah
  • Generator:
  • 100 A
Crane
  • Crane:
  • Mowi
  • Model:
  • P40
  • Lifting torque:
  • 37 kNm
  • Slewing torque:
  • 12 kNm
  • Slewing arc:
  • 360°
  • Reach:
  • 6.2 m
Harvester head
  • Harvester head:
  • LogMax
  • Model:
  • LM 2000T
  • Feed rate:
  • 3.1 / 4.0 m /sec
  • Feed force:
  • 14,9 kN
  • Number of feed wheels:
  • 2
  • Max. opening:
  • 330 mm
Chassis
  • Service weight:
  • 7700 kg
  • Length, standard:
  • 6600 - 7200 mm
  • Width:
  • 1900 mm
  • Highest height:
  • 2900 mm
  • Ground clearance:
  • 400 mm
  • Loading area:
  • 2.00 m²
  • Loading capacity:
  • max. 5 tons
Download Product Sheet

OPTIMAL DRIVER ENVIRONMENT

A welcoming and spacious cabin, adapted for long working days, is paramount. Regardless of whether you choose a harvester, forwarder or combi machine, you will be greeted by the latest technology, ergonomically designed chair, fully automatic climate control system and perfect overview of the working area thanks to the large windscreens. Everything has been sketched, adapted and designed down to the smallest detail.

SUSTAINABLE FORESTRY

We develop our machines based on three basic requirements: gentleness to nature, comfortable workplaces for the driver and, of course, the right properties for efficient and smart forestry work. As a manufacturer of modern forestry machines, the fact is we play a decisive role that includes great responsibility for the future and sustainable forestry.

TWO MACHINES IN ONE

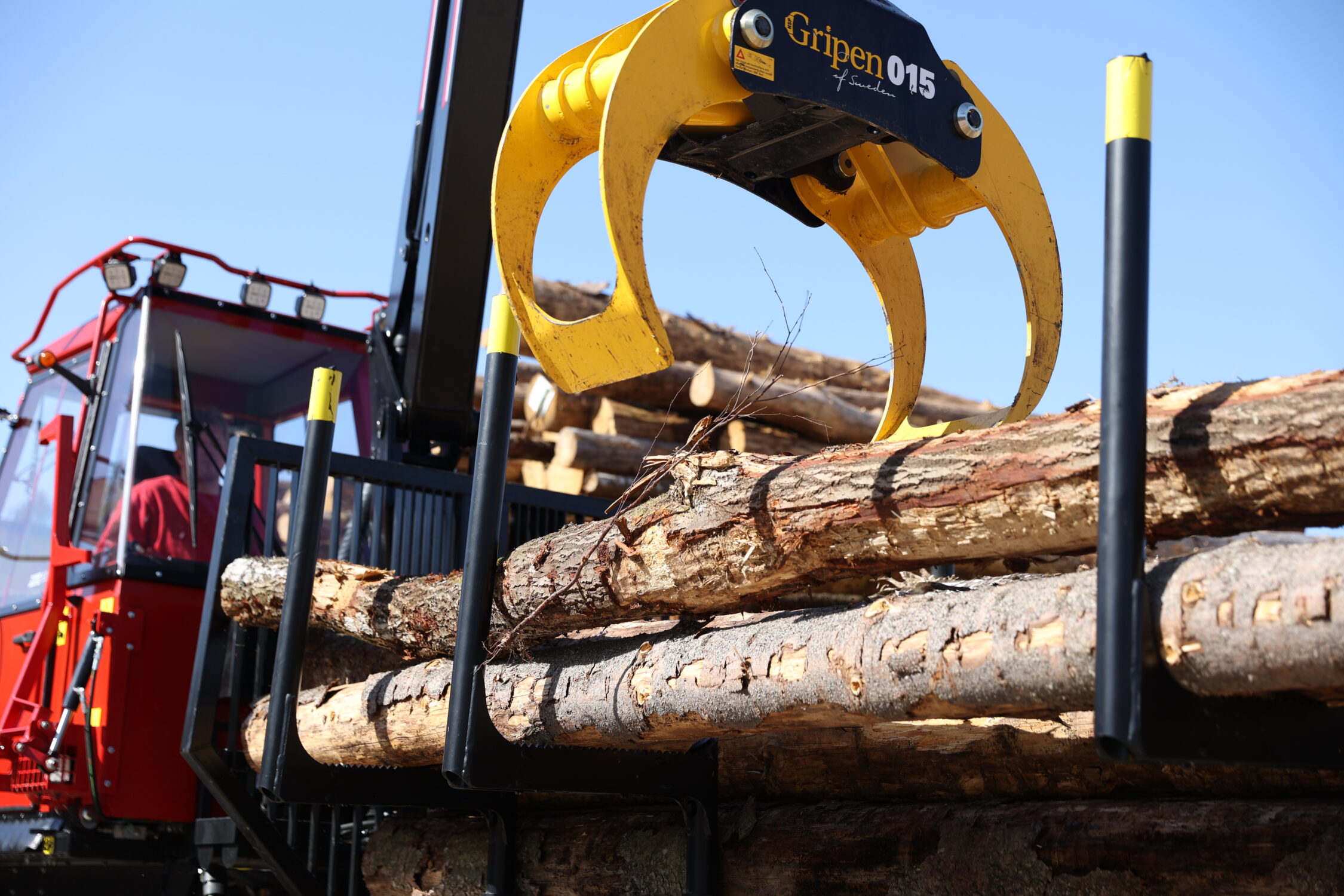

With a combi machine from Terri, you get to experience the best of two forestry machines all in one package. In just 15 minutes you can easily turn your harvester into a forwarder, or vice versa. And thanks to a powerful crane and equally powerful harvester head, both tasks are guaranteed to be performed well. Sometimes that Småland ingenuity knows no bounds.
